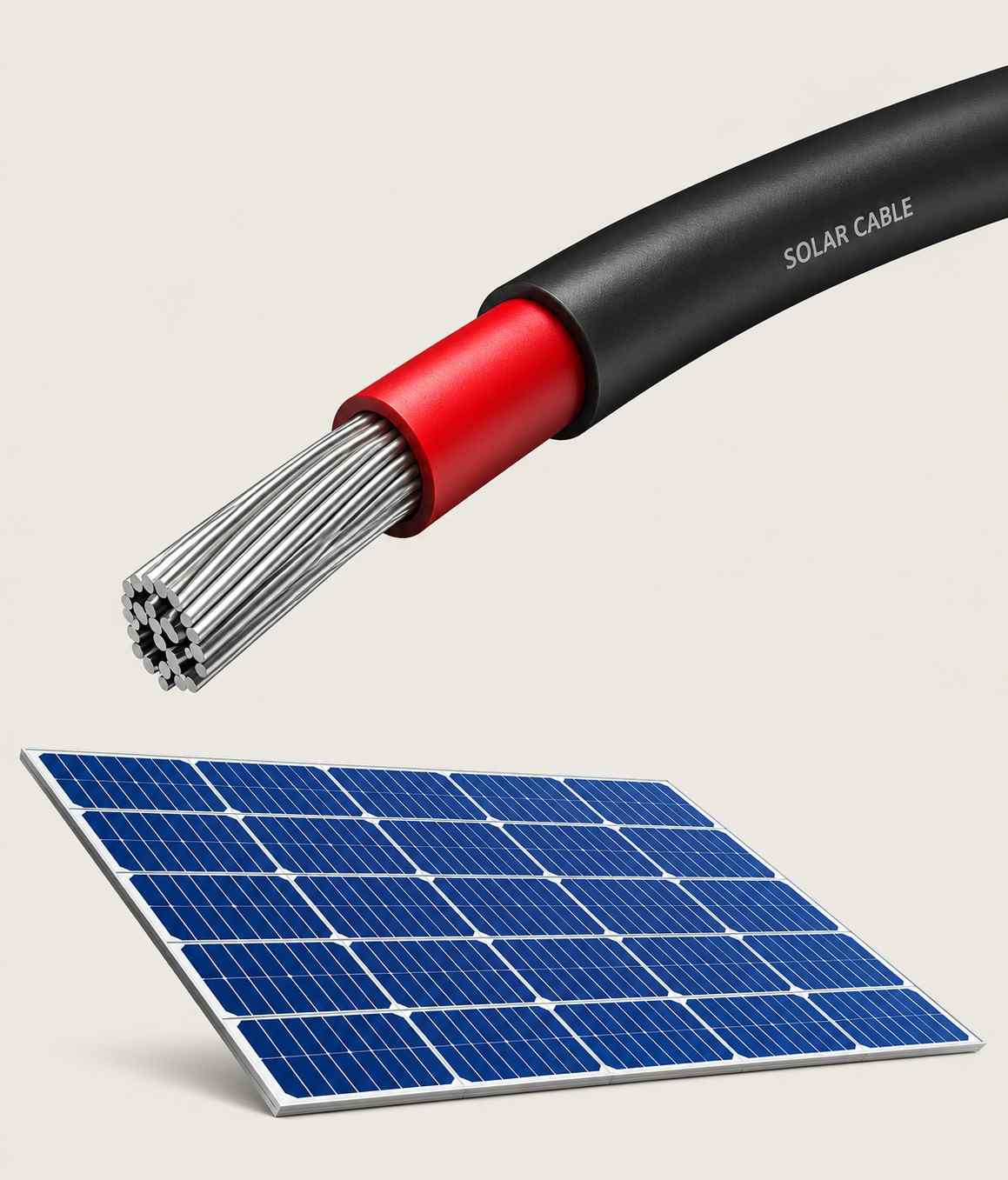

Polycab Solar Cables
Polycab, India’s industry leader in wires & cables, offers Solar Cables designed to support renewable energy applications. These cables are specially developed for the solar industry, providing excellent flexibility, abrasion and moisture resistance, and reliable performance under extreme weather conditions.
Applications
Photovoltaic Systems
Suitable for connecting PV power supply systems
Indoor & Outdoor Use
Designed for reliable installation in different environments
Flexible Installation
Suitable for flexible and fixed installations with high mechanical
strength
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 0.6/1 kV AC |
| Rated DC Voltage | 1.5 kV |
| Maximum DC Voltage | 1.8 kV |
| Maximum AC Voltage | 0.7/1.2 kV |
| Working Voltage | DC 1000 V |
| Insulation Resistance | 1000 MΩ-km |
| Spark Test | 6000 Vac (8400 Vdc) |
| Voltage Withstand | 6500 V for 5 min (EN50395) |
| Ampacity | As per PV system requirements |
