Polycab Copper Armoured Cable Suppliers, Dealers, Distributors, Traders and Wholesalers in Navi Mumbai
Indian Cables & Electricals Pvt. Ltd. is well known polycab copper armoured cable suppliers, dealers, distributors, traders and wholesalers in Navi Mumbai. Our supply is readily available through certified and high quality armoured cables that are ideal in all industrial, commercial or utility projects. Team up with us and get competitive prices, assured product quality and a dependable supply chain. Select the copper and steel strength- select us and you have life time cables. The armour is heavy-duty metallic and gives you a fortress of shield to your power line, preventing the core copper conductors against the strongest physical and environmental hazards. Ensure Power Continuity of your project!

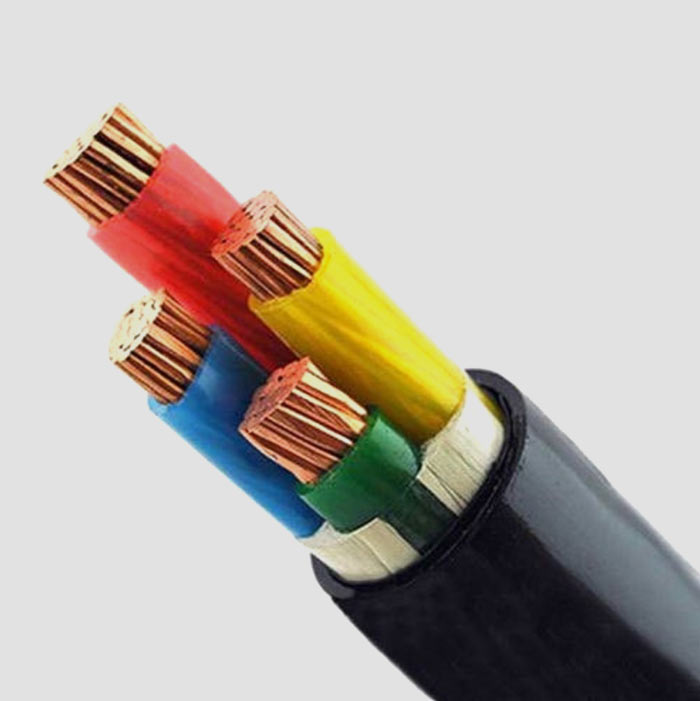

What is Copper Armoured Cable?
ACopper armoured Cable is an electric cable that is of maximum strength and is meant to last. It has an inner conductor composed of a conductor of high conductivity (copper) which is covered by insulation, bedding and most importantly a layer of metallic armouring. Normally produced of galvanized steel wire or steel tape, this armour serves as a shield against mechanical damage, i.e., crushing, impact, and cuts.
What is Copper Armoured Cable?
Copper armoured Cable is an electric cable that is of maximum strength and is meant to last. It has an inner conductor composed of a conductor of high conductivity (copper) which is covered by insulation, bedding and most importantly a layer of metallic armouring. Normally produced of galvanized steel wire or steel tape, this armour serves as a shield against mechanical damage, i.e., crushing, impact, and cuts.
Principle of Copper Armoured Cable:
Being as prominent polycab copper armoured cable suppliers in Navi Mumbai, it has following principle according to purpose.
The working principle of a copper armoured cable is that electric power is conducted through copper conductor, and the armour is used to preserve the mechanical protection against the damage and other environmental forces. Layered design of cable which consists of insulation and protective cover have guaranteed that the current is well contained and the cable is robust enough to be used to work in a difficult environment, direct burial or industrial purposes.
Work Process:
- Conductor: Copper armoured cable wholesalers in Navi Mumbai is the main material, which is a strained copper wire and has to work with electricity.
- Insulation: Conductor is wrapped with an insulating layer (i.e. XLPE), which does not allow electric current and short circuits to flow through.
- Bedding: This is a layer of material which serves as a cushion between the insulation and the outer armour to offer a protective boundary.
- Armour: The important protective element is a protective shell of armour, which is normally steel wire armour. copper armoured cable dealers in Navi Mumbai offers high mechanical security, protection against crushing, impact and stress.
- Outer sheath: This is a last outer shield that ensures that the internal parts are not affected by moisture or corrosion by chemicals or sunlight, or general wear and tear.
Advance Technical Specifications of Copper Armoured Cable:
We've added below a specialized table of polycab copper armoured cable in Navi Mumbai that provides further technical specification information
| Feature | Advanced Specification | Industrial Function/Benefit |
|---|---|---|
| Voltage Grade | 650/1100 V (AC) | Standard for Low Tension (LT) Industrial Power. |
| Conductor | Copper (Class 2 Stranded) | Superior Conductivity and Current Rating. |
| Insulation | XLPE (Cross-Linked Polyethylene) | High thermal stability and longer life. |
| Max. Operating Temp. | 90∘C | Allows for higher current carrying capacity. |
| Short-Circuit Temp. | 250∘C | Withstands severe fault conditions. |
| Armouring | Galvanized Steel Wire/Strip | Robust Mechanical Protection (Crushing, Impact). |
| Outer Sheath | PVC Type ST2 or FRLS/LSZH | Environmental, Oil, Chemical Protection, and Fire Safety. |
| Standard | IS 7098 (Part 1) / IEC 60502 | Ensures certified performance and quality. |
| Typical Use | Direct Burial, Harsh Environments | Essential for reliable underground or exposed industrial supply. |
Benefits / Features of Copper Armoured Cable:
As prominent copper armoured cable dealers in Navi Mumbai, according to operation we provided different benefits which are given below.
- Mechanical Protection Superior: The combined armour is made of tough steel which acts as a significant defense against crushing, impact, and accidental cuts which ensure operational integrity in polycab copper armoured cable suppliers in Navi Mumbai.
- Outstanding Conductivity: Uses high purity, annealed copper conductors, which provide excellent electrical conductivity and lowest energy loss as a result of far transmission distances in copper armoured cable distributors in Navi Mumbai.
- Increased Safety and Earthing: The metallic armour layer may also act as a viable earth connection, being fast to handle fault currents and providing greater overall system safety.
- Maximum Longevity: Constructed out of the high-grade materials which cannot be affected by moisture, chemicals and the temperature variations, these cables ensure a long period of service life with minimum maintenance.
Key Characteristics of Copper Armoured Cable:
As copper armoured cable distributors in Navi Mumbai, following is the key characteristics which according to conductivity.
- Strong Armouring: The protective coating is usually comprised of Galvanized Steel Wire (GSW) or that of tape as copper armoured cable traders in Navi Mumbai are chosen because We are strong in tensile strength and impact against rusting.
- Core Conductor: Copper armoured cable wholesalers in Navi Mumbai has strands of Annealed Bare Copper (Cu) that is known in the industry to be the best in terms of electrical conductivity and flexibility.
- Outer sheathing: This is the outer coating of the cable in hard material such as PVC or LSZH (Low smoke Zero Halogen), to prevent UV and oil damage as well as wear and tear of the cable.
- High Voltage Suitability: polycab copper armoured cable suppliers in Navi Mumbai are also produced with a high capability of operating over a wide range of power, between Low Tension (LT) 1.1 kV and High Tension (HT) operating requirements.
Applications of Copper Armoured Cable:
Serve as prominent copper armoured cable traders in Navi Mumbai, it is applicable in different sites which are given below.
- Underground Power Systems: It is applied in direct burial installations which are not conducted and the armour shields the cable against stone, movement of the earth, and damage caused by the excavations.
- Industrial and Manufacturing Plants: These are necessary to provide power to heavy machines and other essential motors in factories where the cables are usually physically stressed and loaded.
- Oil, Gas, and Petrochemical Facilities: We are used in hazardous areas to provide dependable oil power and control circuits, which can offer mechanical risk and chemical exposure protection.
- Tunnels and Mining Operations: Provides power in limited and dark locations where cables are very susceptible to crushing, impacting, and rodent destruction during operation.
- Commercial Building Risers: This serves as the main primary cable that is the main line of the supply of power as it is run vertically in the case of a multi-story building to avoid the main supply being damaged in case of an installation or a building collapse.
Copper Armoured Cable Supply for Navi Mumbai Industrial Power Applications
Indian Cables & Electricals supplies Polycab copper armoured cables for power distribution, industrial electrical installations and infrastructure requirements across Navi Mumbai. Copper armoured cables can be suitable for applications where reliable electrical conductivity and additional mechanical protection are important, including industrial facilities, commercial projects, equipment connections and power distribution systems. We cater to requirements across industrial locations such as Turbhe, Mahape, Rabale, Kopar Khairane and Pawane, along with Ghansoli, Airoli, Sanpada, Vashi and Belapur. Our copper armoured cable supply supports electrical contractors, industrial maintenance teams, project procurement professionals and businesses involved in new installations, electrical upgrades and replacement projects. Customers can contact Indian Cables & Electricals for Polycab copper armoured cables based on conductor size, voltage rating, cable construction, installation conditions and project requirements in Navi Mumbai.
Why to select Copper Armoured Cable?
- Genuine Quality and Certification: Our cables are of guaranteed quality and certification as We are provided by top rated manufacturers and thus will not compromise on standards of quality as required by any country or industry.
- Wholesale Pricing Benefit: Since we are a large Distributor/Wholesaler, our bulk pricing is very competitive and it will save you the direct cost of procurement of your projects.
- Big Ready Stock: We carry a huge, well-organized stock and can meet your needs when you order, as well as reduce irritating project delays.
Indian Cables & Electricals Pvt. Ltd. is leading polycab copper armoured cable suppliers, dealers, distributors, traders and wholesalers in Navi Mumbai. Secure Your Power. Secure Your Future. Our stock of Copper Armoured Cables implies no quality and safety compromise. Designed to be of extreme strength and low loss performance. Do not simply pass the power--guard it round with an impregnable steel wall. Contact us today and find a strong and solid supply chain solution that will drive success!
