Polycab Aluminium HT Cable Suppliers, Dealers, Distributors, Traders and Wholesalers in Navi Mumbai
Indian Cables & Electricals Pvt. Ltd. is prominent polycab aluminium HT cable suppliers, dealers, distributors, traders and wholesalers in Navi Mumbai. We use only certified and high-grade cables, and there is no compromise of any sort on safety and durability. You need a large industrial plant, you need powering a big real estate development, you need to upgrade a municipal substation, you need the right cable, now, and our ready inventory, competitive pricing, and pan-Mumbai delivery chain get you the right cable just in time. Get in contact with us and energize your high-ambitious project with fear and tranquillity!

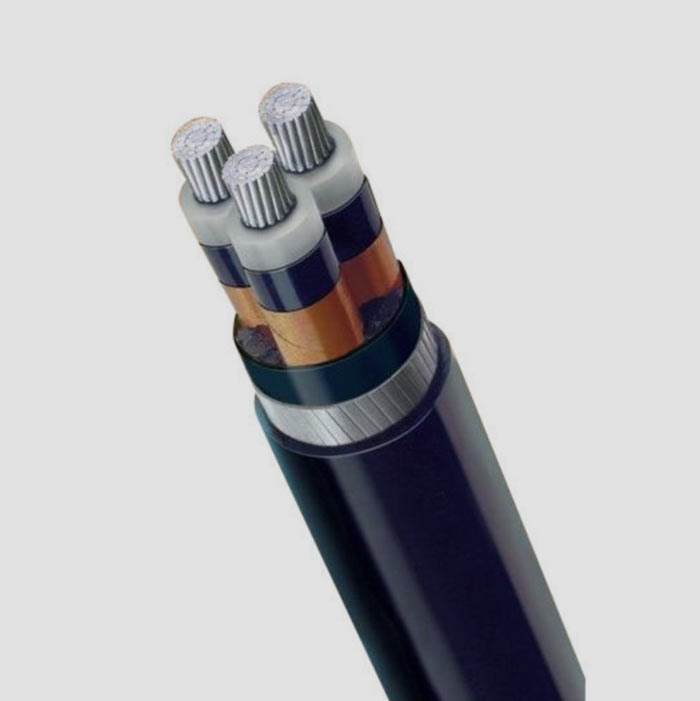

What is Aluminium HT Cable?
It is a special electrical conductor used to conduct bulk electrical power at High Voltages (normally 3.3 kV and above) to a degree of safety and efficiency. It employs aluminium as the conductor material, which is lightweight and inexpensive and integrated with the latest insulation, XLPE (Cross-linked polyethylene) and special screening layers to manage high electrical stress levels associated with heavy-duty electricity transmission.
Working Principle of Aluminium HT Cable:
As aluminium polycab HT cable traders in Navi Mumbai, following is the working principle of it which has given below.
The operational concept behind an aluminum High Tension (HT) cable is the inherent nature of electrical conduction in an aluminum conductor, and the overall design of the cable is only the means of controlling and safely containing the high voltage.
- Electrical Conduction: The electric current is formed by the flowing of electrons through the aluminum on application of the voltage.
- High Voltage Usage: Copper is more conductive but because the size of the equipment is large, aluminum is employed in large scale work since it is cheap and less heavy which makes it require less support and towers.
- Electrical Barrier: Aluminium HT cable wholesalers in Navi Mumbai is an insulation that helps to keep the high voltage current inside and avoid short circuiting.
- Physical Integrity: The physical integrity provides a covering of armor such as steel wire, aluminum tape, etc., against mechanical damage such as crushing, impact and penetration of the cable.
- Non-Magnetic Benefit: Aluminium HT cable dealers in Navi Mumbai is beneficial to the AC systems since it does not allow eddy currents to develop in the causing overheating.
- Outer Sheath: Finishing sheath an outer sheath is a final outer coating to offer extra protection against environmental factors and mechanical stress.
Advance Technical Specifications of Aluminium HT Cable:
We've added below a specialized table of polycab aluminium HT cable in Navi Mumbai that provides further technical specification information
| Specification Parameter | Detail (Typical/Advanced) | Significance |
|---|---|---|
| Standard | IS 7098 (Part 2) / IEC 60502-2 | Defines construction and testing requirements. |
| Conductor Material | Aluminium (Compacted Stranded, Class 2) | Lightweight and cost-effective for HT power transmission. |
| Insulation Type | XLPE (Cross-Linked Polyethylene) | Excellent dielectric strength and high temperature resistance. |
| Voltage Grade (U0/U) | 6.35/11 kV, 12.7/22 kV, 19/33 kV | Suitability for earthed (E) or unearthed (UE) systems. |
| Max. Conductor Temp. (Continuous) | 90∘C | Higher current carrying capacity (Ampacity) than PVC cables. |
| Max. Conductor Temp. (Short Circuit) | 250∘C (for 1 sec) | High thermal stability during fault conditions. |
| Conductor Screen | Extruded Semi-conducting Compound | Eliminates air pockets and controls electrical stress at the conductor surface. |
| Insulation Screen (Metallic) | Copper Tape or Copper Wire | Confines electric field and carries earth/fault currents. |
| Armour (For Multi-core Cables) | Galvanized Steel Strip (GS) | Provides mechanical protection against external damage. |
| Armour (For Single-core Cables) | Non-Magnetic Material (e.g., Aluminium Wire/Strip) | Prevents induction heating (eddy current losses) in the armour. |
| Outer Sheath | PVC Type ST2 / FR-LSH | Protection against environment, chemicals, and fire hazards. |
| Partial Discharge (PD) Value | Max. 10 pC at 1.73U0 | A critical test for HT cables; low value indicates high insulation integrity. |
| Triple Extrusion | Mandatory | Ensures clean, smooth interfaces, minimizing voids and extending cable life. |
Benefits / Features of Polycab Aluminium HT Cable:
Being as notable polycab aluminium HT cable suppliers in Navi Mumbai, we provided different benefits according to different performance which are given below.
- Excellent Corrosion Resistance: The conductor is covered with a strong insulation (such as XLPE), which is highly resistant to moisture and chemicals and other environmental deterioration factors.
- High Power Handling: The aluminium HT cable distributors in Navi Mumbai have larger cross-sections and even though We are aluminium, we have been designed to carry high power loads at High Tension levels effectively and safely.
- Cost-Effective Solution: Aluminium HT cable wholesalers in Navi Mumbai is significantly cheaper than copper, and that is why large-scale projects will be able to save lots of money on the price of the cables and do not lose the performance.
- Lightness Benefit: Aluminium HT cable traders in Navi Mumbai have much lower weights and are therefore very easy to handle, transport and install, especially when it is a long distance or the site where the installation is to be done is difficult.
Key Characteristics of Polycab Aluminium HT Cable:
As notable aluminium HT cable dealers in Navi Mumbai, according to different requirement our characteristics define which are given below.
- High Voltage Rating HT: Made specifically to withstand large electrical currents required in primary power distribution.
- The XLPE Insulation: This form of insulation involves insulating material that incorporates cross-linked polyethylene CLPE that is thermally stable, has a high dielectric strength and hence a long service life.
- Conductor Shielding: Aluminium HT cable suppliers in Navi Mumbai consists of semi-conducting layers that envelop the conductor and insulation to make the electric field homogenous to stop harmful internal partial discharges.
- Strong Mechanical Strength: The general layout, armouring, and outer covering gives the high tensile strength, and the protection of external mechanical damages during laying.
Applications of Polycab Aluminium HT Cable:
Serve as aluminium HT cable distributors in Navi Mumbai, it is applicable in different plants which are given below.
- Power Substations and Connection to the grid: Aluminium HT cable suppliers in Navi Mumbai are widely used to connect the power generating stations to the main substations, and the substations in the larger national power grid network.
- Large Industrial Complexes: Necessary to provide bulk, dependable high-voltage power of utility source to large consuming centers such as cement, steel, or textile plants.
- Solar/Wind Renewable Energy Plants: Applied to the collection of the generated high-voltage power of several solar inverters or wind turbines and to the delivery of the power to the grid synchronization point.
- Significant infrastructure and Metro Rail: The main solution when it comes to cabling is the provision of heavy power input in major infrastructure developments such as underground metro tunnels and large airport facilities.
- Business and residential townships: Perfect when developing the primary underground or overhead power backbone that serves and supplies electricity throughout the huge housing and business complexes.
Why to select Us in Aluminium HT Cable?
- Best Market Rates: With such a high-volume dealer, the prices are very competitive as We are offered at the factory-direct rates, which are the best to offer to your investment.
- Technical Guidance: Our competent sales staff will assist you to choose the exact cable requirements voltage, cross-section of a particular use.
- Pan-Mumbai and the Delivery: Our supply chain network has been traditionally well-maintained and reliable to deliver your cables safely and quickly wherever you are working.
Indian Cables & Electricals Pvt. Ltd. is leading polycab aluminium HT cable suppliers, dealers, distributors, traders and wholesalers in Navi Mumbai. We are your trusted partner and you can rely on us to provide you with this vital element in time and at a low cost. Be smart in providing power to your future project with Aluminium HT. Our strong competitive strength is our financial sustainability and reduced footprint at the expense of the needed large-scale power network safety and durability. Projects would be able to save on operational costs in the long term and easily move power by the use of certified Aluminium HT Cables. Contact us for more details.
